Internal & External Doors

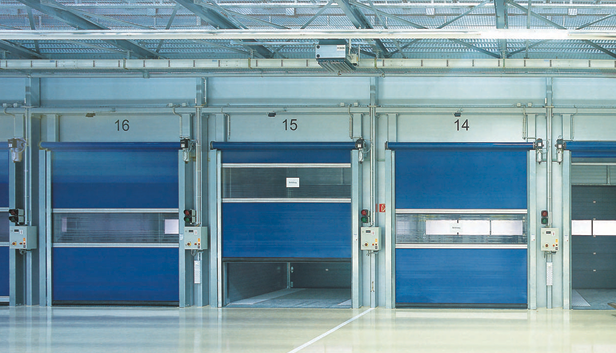

Hörmann high-speed doors are used both inside and as exterior doors to optimise traffic flow, improve room air conditions and save energy. Your advantage: our SoftEdge technology with built-in crash-protection makes flexible high-speed doors extremely safe and economicall
Read more| Door type | V 4010 SEL | V 5015 Alu-R | V 5015 SEL | V 6020 SEL |
|---|---|---|---|---|
| Internal door | • | • | • | • |
| External door | - | • | - | • |
| Size range | ||||
| Max. width (LDB) | 4000 mm | 4000 mm | 5000 mm | 5000 mm |
| Max. height (LDH) | 4000 mm | 4000 mm | 5000 mm | 6000 mm |
| Speed | ||||
| With standard FU control BK 150 FU E H | ||||
| Max. opening speed | 1.0 m/s | 1.5 m/s | 1.5 m/s | 2.0 m/s |
| Max. closing speed | 0.8 m/s | 0.8 m/s | 0.8 m/s | 0.8 m/s |
| Optional control FU E | ||||
| Max. opening speed | - | - | - | 3.0 m/s |
| Max. closing speed | - | - | - | 0.8 m/s |
| Emergency opening | Crank handle Optional: Automatic door opening via UPS in case of power failure | Optional: Automatic door opening via UPS in case of power failure | Crank handle Optional: Automatic door opening via UPS in case of power failure (BK 150 FU E H, 230 V) | Crank handle Optional: automatic door opening via UPS in case of power failure (BK 150 FU E H UPS, 230V), counter weights with back-up battery |
| Curtain | UPVC, aluminum profile | UPVC, with spring steel wind locks and lateral twin rollers | With aluminum profile | Spring steel wind lock with lateral twin rollers and pull mechanism |
| Fabric thickness | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
| Vision panel thickness | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm |
| Resistance to wind load (EN 12424) | - | - | Class 3 (120 km/h) | Class 2 (100km/h) |
| Curtain colours | • | • | • | • |
| RAL 2004 Pure orange | • | • | • | • |
| RAL 3002 Carmine red | • | • | • | • |
| RAL 5010 Gentian blue | • | • | • | • |
| RAL 7038 Agate grey | • | • | • | • |
Curtain colours
RAL 2004
Pure orange
RAL 3002
Carmine red
RAL 5010
Gentian blue
RAL 7038
Agate grey
